Joemars JM430 AZ50 (2017)

Large capacity ZNC Die Sink EDM, featuring Joemars Fuzzy Logic proven great results with only 4 inputs.

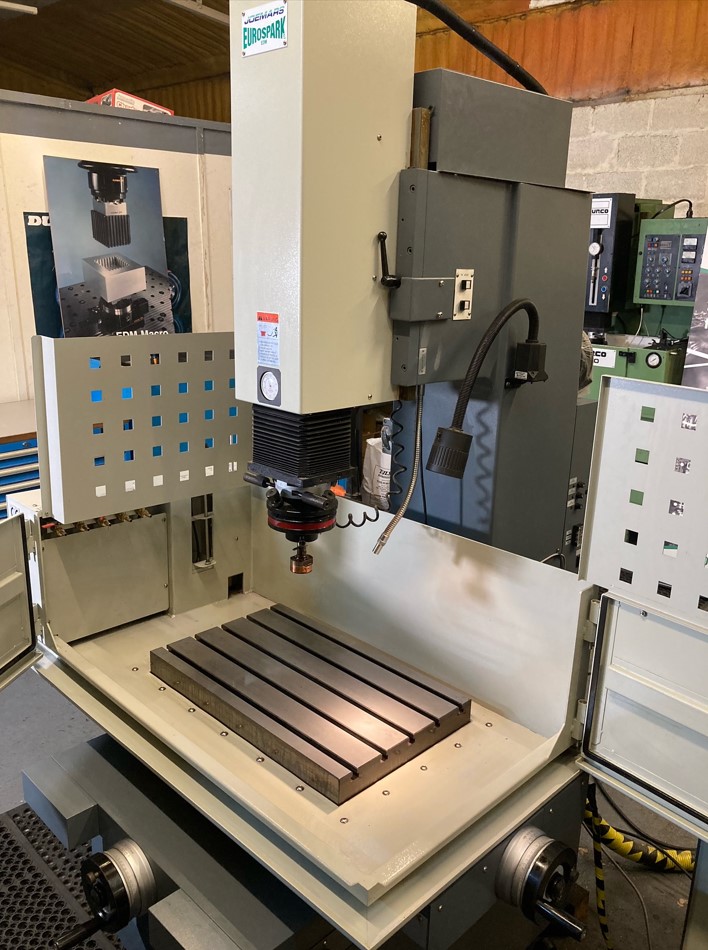

IMG_5299

Features

Video of machine for sale:

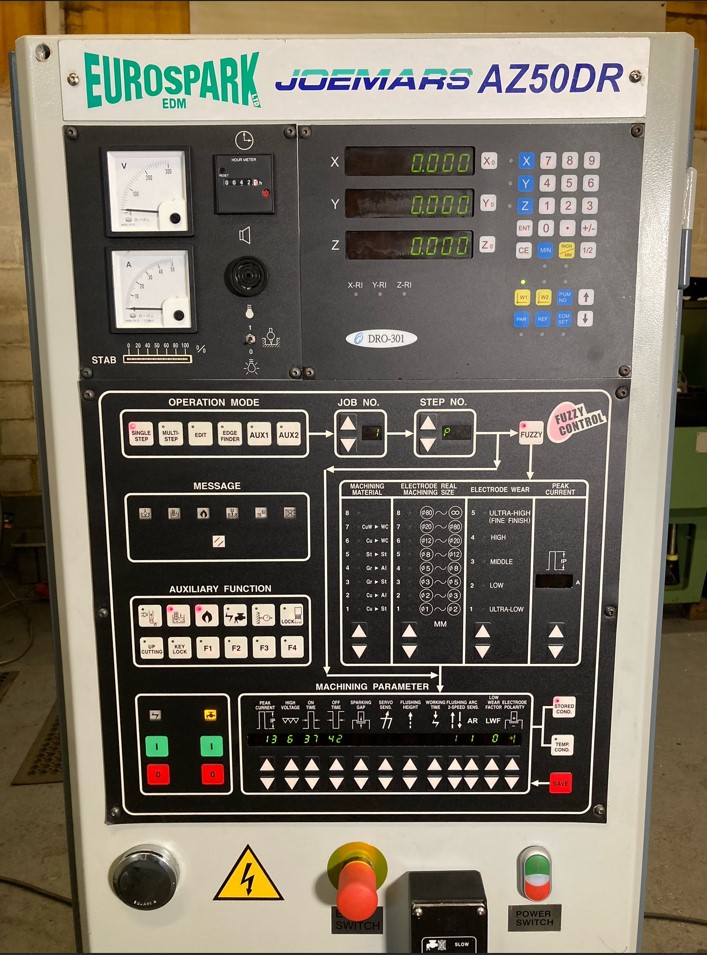

Joemars Fuzzy Logic Control System – “Probably the least complicated EDM machine available

At a single glance, the machine operator has a visual overview of the complete machining process. From the 3 axes, DRO showing the electrode position to the specific machining parameters, set by only 4 operator inputs:-

  • Electrode type and material to be machined
  • Electrode size
  • Electrode wear rate
  • Maximum current

Once the above is entered, the machine will auto set, and carry out machining automatically. It will alter setting if it encounters poor cutting conditions, and revert once they are cleared.

The fuzzy logic control system is a basic form of adaptive control it monitors the important machining parameters. If the machine encounters a problem whilst cutting, the parameters are automatically adjusted until the problem is cleared, then the control will revert to using the original settings.

Programmable Z axis – 50 programs which can be a single step or up to 10 steps

Each step can contain 12 different machining parameters. The machining parameters can be modified at any time during cutting without affecting the stored program.

Using the fuzzy logic control system, most users have seen considerable improvements in machining time, surface finish, especially when machining thin ribs and electrode wear rates.”

AZ series Set up and Controls Virtual Demo:

Please see below customer endorsement of this products:

Optional Equipment

Optional  Accessories:

  • C/W Box
  • Pre Owned 3r Tooling
  • New Pallet style tooling

Specification

Work surface X/Y 650 x 400mm
Max workpiece weight 900Kgs
Axis Travel X/Y/Z/W 400 x 300 x 200 x 200mm
Max Electrode weight 75Kgs
Max Quill to table (no tooling) 230-630mm
Work tank size L/W/H 1060 x 600 x 340mm
Dielectric capacity 340L
Max Current 50 amps
Power consumption 4.5Kva
Electrode wear 0.25%
Surface finish 0.2μm Ra
Machine approximate weight 1700kg
Machine dimensions WxDxH 1530x500x2175 mm

850x1000x1100mm—tank

580x725x1730mm-generator
